All-sun EM2280 Ultrasonic Diagnostic Tool Multifunction Leak Detector Gas Liquid Leak Detector Machine Fault Diagnostic Tool

All-sun EM2280 Ultrasonic Diagnostic Tool Multifunction Leak Detector Gas Liquid Leak Detector Machine Fault Diagnostic Tool

Regular price $207.46
Regular price $0.00 Sale price $207.46
Sale Sold out
Shipping calculated at checkout.
Ships From

NOTE
This package does not include batteries.
Due to new rules of China Post Air, parcels must not include batteries, otherwise it will not get through the custom.


INTRODUCTION

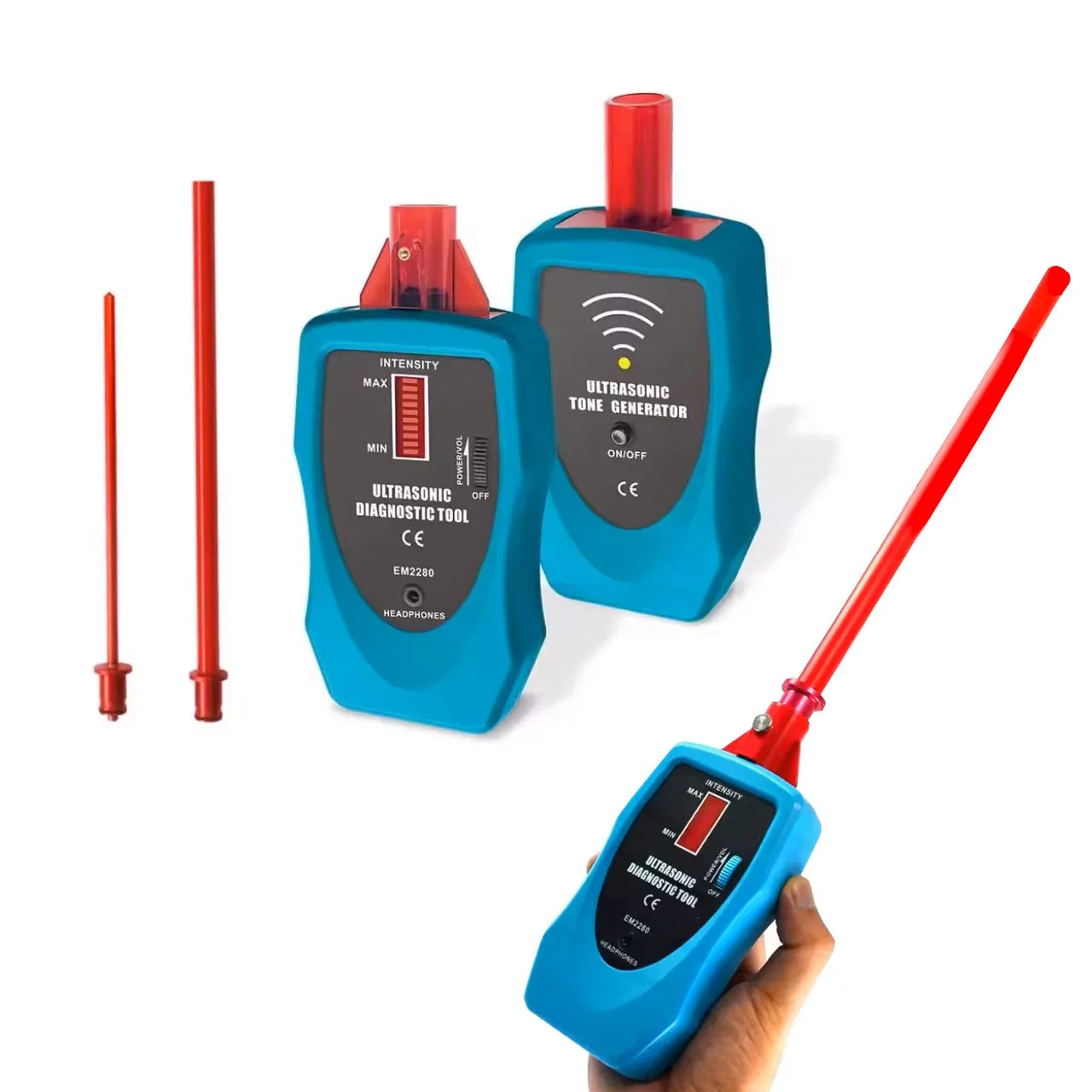

This tool consists of an ultrasound receiver, a tone generator, an air probe, a contact probe and a headphone.
The receiver is sensitive only to ultrasonic energy in the frequency range of 36000 to 44000Hz.
The energy is amplified by internal circuitry and converted to audible sounds (available through the headphone) and an intensity reading on the red LED display.
The tone generator is used with the ultrasound receiver to check for faulty seals in nonpressurized enclosures, such as automotive cabin windows/doors/roofs, etc.

ITEM SPECIFICS
Power Supply:  9V, 6F22 or equivalent
Frequency Response:  36kHz~44kHz
Storage Condition:  -10°C~50°C, <85%RH
Operating Condition:  0°C~40°C, <75%RH


APPLICATION
1.Air/Vacuum Leaks
2.Gas and Liquid Turbulence
3.Electrical Discharge
4.Mechanical Wear
5.Sound Generation
