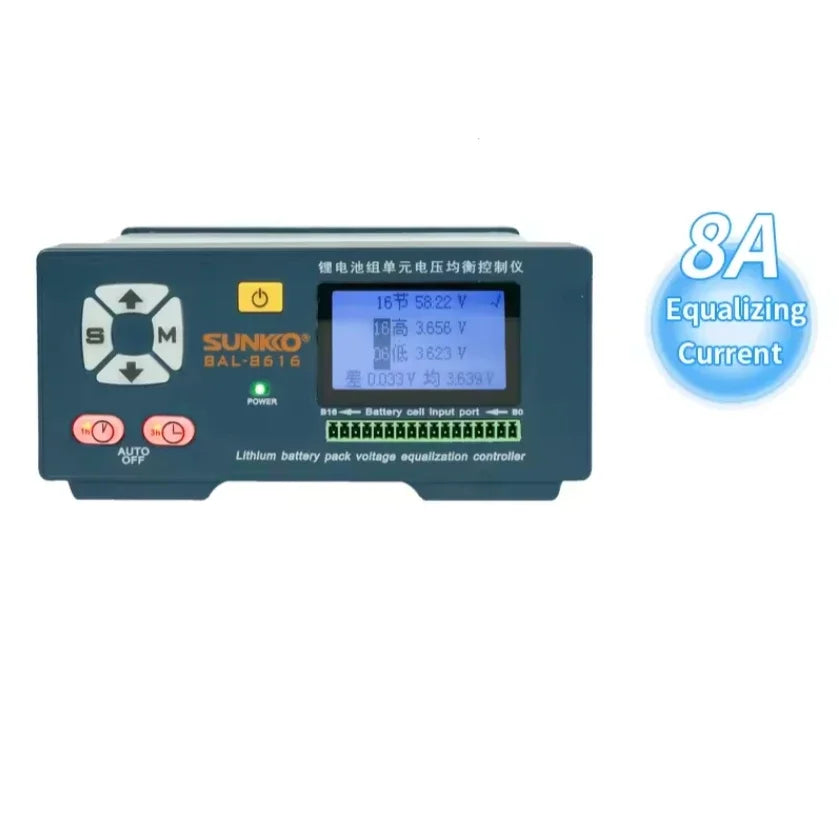

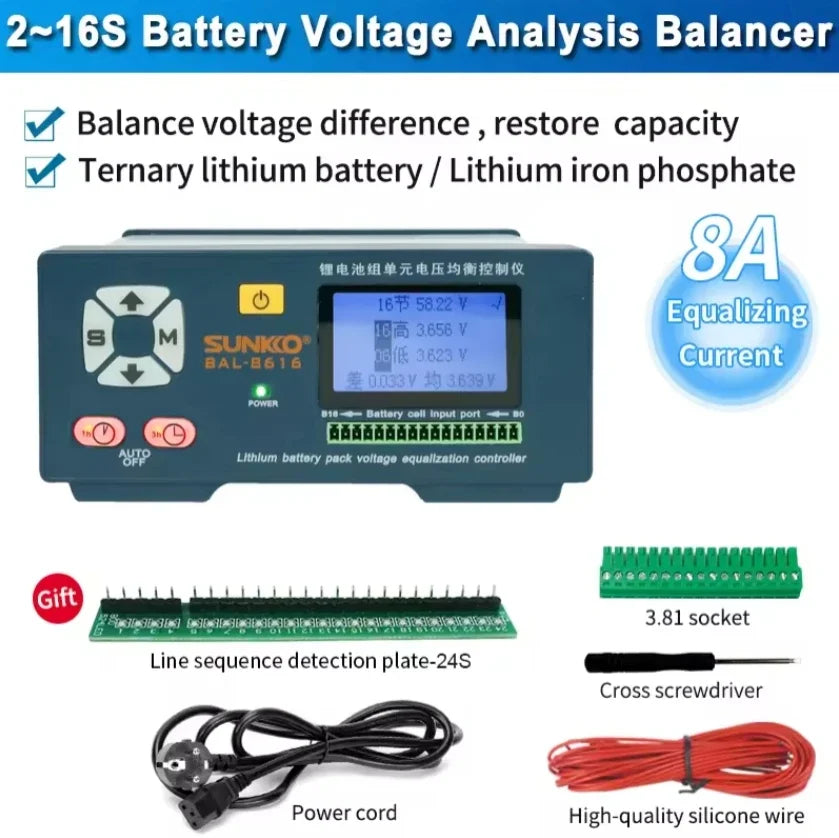

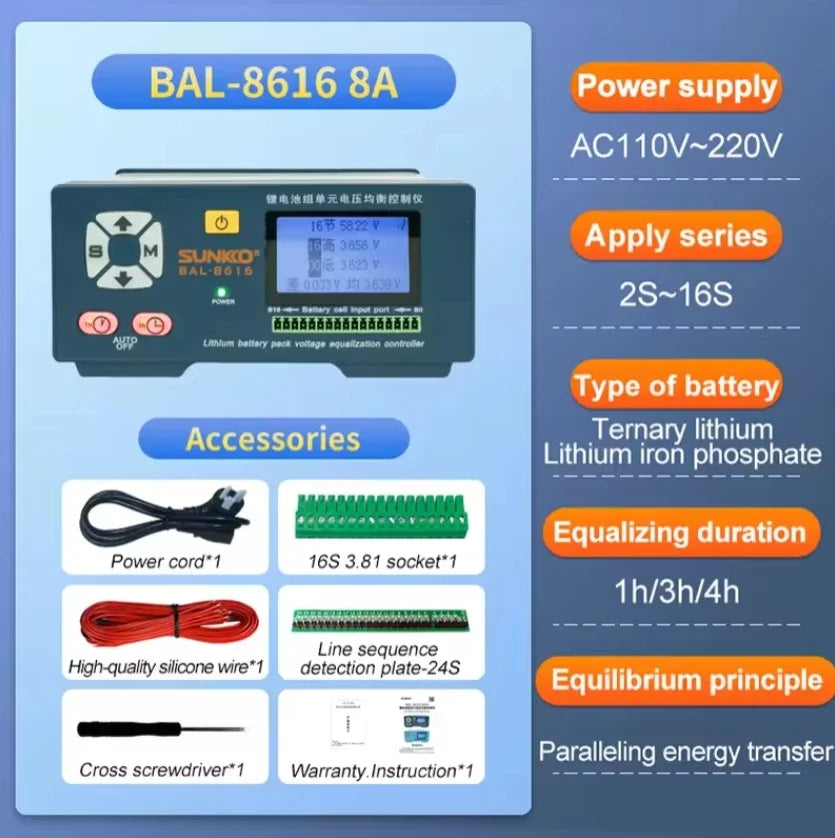

2-16S 16S 24S li ion lifepo4 5A 8A Sunkko BAL-8616 battery balancer equalizer battery repair machine
2-16S 16S 24S li ion lifepo4 5A 8A Sunkko BAL-8616 battery balancer equalizer battery repair machine
Regular price
$159.99
Regular price
$0.00
Sale price
$159.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Products Description
Dear customer:
Please be noted there are four models battery equalizer available
BAL-5616 2-16S 5A balance current
BAL-8616 2-16S 8A balance current
BAL-5624 2-24S 5A balance current
BAL-8624 2-24S 8A balance current
Different model with different price, please choose the one you like
BAL-5616 2-16S 5A balance current
BAL-8616 2-16S 8A balance current
BAL-5624 2-24S 5A balance current
BAL-8624 2-24S 8A balance current
Different model with different price, please choose the one you like
Product overview
BAL-8616 equalizer controller adopts high-frequency transformer inversion and equipotential isolation coupling energy technology to realize the parallel connection of each series of batteries.
Based on the parallel connection state, each series of batteries with high and low voltages realize energy transmission and distribution, and finally realize the high-efficiency and precise balance of the battery pack.
The Taiwan main control chip MCU combines with the ultra-low dynamic impedance inverter to obtain the more than 8A balanced current.
The precise transformer process and fully symmetrical circuit design can achieve the balanced effect of ≤ 30mV.
And the analyzer adopts latest large-scale high-speed MCU chip of American microchip to carry out real-time precision detection of
each unit of lithium battery pack.
The voltage information collected by the chip is stored and calculated and compared, and the data is processed and displayed on the LCD screen.
This detector cal detect the voltage of up to 24 series of lithium batteries at the same time, and automatically analyze and compare the voltage.
Real-time monitoring equalizing voltage

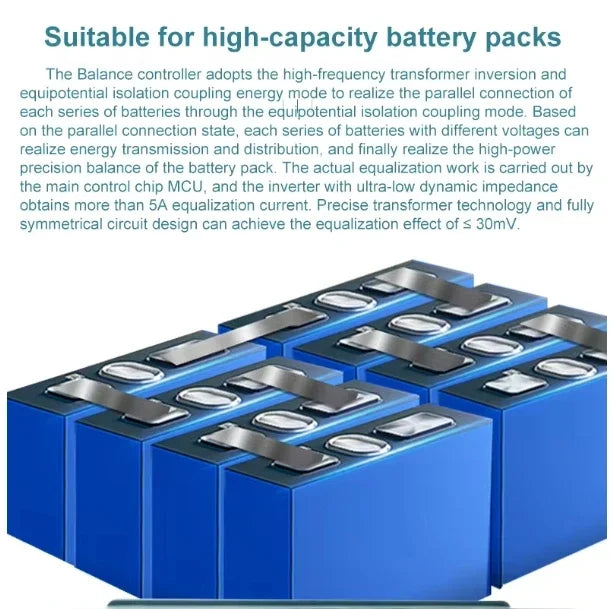

It is suitable for high-capacity ternary lithium battery pack and lithium iron phosphate battery pack, etc.
The maximum equalizing current can reach 8A, and the equalizing voltage difference can reach 30mV;
Forced start switch is added to better solve the problem of poor equalization effect. Product features
1.Automatically analyzing the maximum voltage difference value and the average voltage value of the battery pack.When balancing, it can quickly detect the voltage of each string of the battery pack.
2. Voltage difference analysis and equalizing voltage dual function.
3.Equipped with multi-mode intelligent voltage detection display, it can monitor the working progress of battery pack repair in real time.
4. Nano amorphous isolated fully symmetrical transformer ensures the minimum voltage difference
5.American ultra-low internal resistance MOS devices constitute an ultra-low dynamic impedance inverter circuit. Achieve high power balance.
6.The control and management of intelligent MCU chip realize automatic self balancing;
7.Automatically detect the minimum voltage of the battery, stop working when the battery energy is low, and protect the battery from power loss;
8. Over current fuse resistance at each series input end to ensure safety;
9. 1h/3h/4h time-limited equalization time adjustable;
10. Heat dissipation design of inverter under extreme equilibrium state of high voltage difference.
BAL-8616 equalizer controller adopts high-frequency transformer inversion and equipotential isolation coupling energy technology to realize the parallel connection of each series of batteries.
Based on the parallel connection state, each series of batteries with high and low voltages realize energy transmission and distribution, and finally realize the high-efficiency and precise balance of the battery pack.
The Taiwan main control chip MCU combines with the ultra-low dynamic impedance inverter to obtain the more than 8A balanced current.
The precise transformer process and fully symmetrical circuit design can achieve the balanced effect of ≤ 30mV.
And the analyzer adopts latest large-scale high-speed MCU chip of American microchip to carry out real-time precision detection of
each unit of lithium battery pack.
The voltage information collected by the chip is stored and calculated and compared, and the data is processed and displayed on the LCD screen.
This detector cal detect the voltage of up to 24 series of lithium batteries at the same time, and automatically analyze and compare the voltage.
Real-time monitoring equalizing voltage
It is suitable for high-capacity ternary lithium battery pack and lithium iron phosphate battery pack, etc.
The maximum equalizing current can reach 8A, and the equalizing voltage difference can reach 30mV;
Forced start switch is added to better solve the problem of poor equalization effect. Product features
1.Automatically analyzing the maximum voltage difference value and the average voltage value of the battery pack.When balancing, it can quickly detect the voltage of each string of the battery pack.
2. Voltage difference analysis and equalizing voltage dual function.
3.Equipped with multi-mode intelligent voltage detection display, it can monitor the working progress of battery pack repair in real time.
4. Nano amorphous isolated fully symmetrical transformer ensures the minimum voltage difference
5.American ultra-low internal resistance MOS devices constitute an ultra-low dynamic impedance inverter circuit. Achieve high power balance.
6.The control and management of intelligent MCU chip realize automatic self balancing;
7.Automatically detect the minimum voltage of the battery, stop working when the battery energy is low, and protect the battery from power loss;
8. Over current fuse resistance at each series input end to ensure safety;
9. 1h/3h/4h time-limited equalization time adjustable;
10. Heat dissipation design of inverter under extreme equilibrium state of high voltage difference.
|
ATTENTION!
|
|
Before use, be sure to connect the terminals after the correct wiring, and then according to the battery pack string number,turn on the DlP switch corresponding to the string number on the back of the balance controller. Otherwise the string number will be displayed abnormal or the screen display is garbled. Wrong or reverse connection of the line sequence will directly damage the balance controller. |
|
|
|
|
|
|
