New Doip VCI c6,mb star c6 with Wifi Full software Xentry 2022.12 Car Diagnostic Tool Obd2 code Scanning and programming
New Doip VCI c6,mb star c6 with Wifi Full software Xentry 2022.12 Car Diagnostic Tool Obd2 code Scanning and programming
无法加载取货服务可用情况
C6 OEM DoIP Diagnosis VCI Multiplexer with V2022.12 Software HDD
C6 OEM diagnosis VCI DoIP Pass thur interfac is the latest interface for For M & S vehicles can replace Star C4/C5.
Diagnosis VCI acts as a Pass-through Interface, also called MB Star C6, For C6 multiplexer to provide complete communication between a vehicle and the XE software loaded on a PC.
VCI DoIP C6 Features:
Support Most model series of For M*** B***
Support DoIP, cover more functions during SCN Coding than SD C4/C5
Diagnosis updates no longer necessary – firmware updates required on rare occasions
Does not need a power supply unit for external power supply
Dandy multiplexer with a small, sturdy construction (no PC core, battery, fan, or display)
VCI DoIP C6 Support Functions List:
Diagnosing
Programming
Smulation studying
Repair information
Automotive maintenance
Technical service bulletin
VCI DoIP C6 Support Systems:
Engines (All Gasoline & Diesel Systems)
Transmissions and Electronic Selector Modules
Airmatic and Active Body Control Suspension Systems
Traction Systems: ESP / ASR / ETS / ABS / BAS / SBC braking systems
Supplementary Restraint Systems (SRS) / Airbag, All body modules OCP / UCP / LCP / SCM / SKF / KFB / RCM / DCM’s
Drive Authorisation System
Sam (Signal Acquisition) Modules
Electronic Ignition System (EIS)
Pneumatic System Equipment and ATA functions
Air Conditioning / climate control Systems
Instrument Cluster
Tyre Pressure Control
Parktronic System
Keyless Go
D2b Command & Audio Gateway (D2B and MOST networks)
TV Tuner
Headlamp Range Adjustment
Seat Electronics
Rvc, RST & Vario Roof modules
Automatic Clutch System ACS
M-Class Body Modules (AAM / EAM / DAS / SEM / VG Transfer Case)
Assyst & ASSYST + systems
Diagnosis VCI DoIP Pass thur interface C6 Summary:
diagnosis VCI DoIP Pass thur interface C6 (Vehicle Communication Interface) multiplexer serves as the interface to the vehicle when performing diagnosis and repairs, and programming electric and electronic on-board vehicle systems.
The diagnosis VCI DoIP Pass thur interface C6 does not have its own PC core, battery, fan, or display. It is operated using the VXDI***AG For XEN***TRY Diagnosis Pad via WLAN or a USB cable connection.

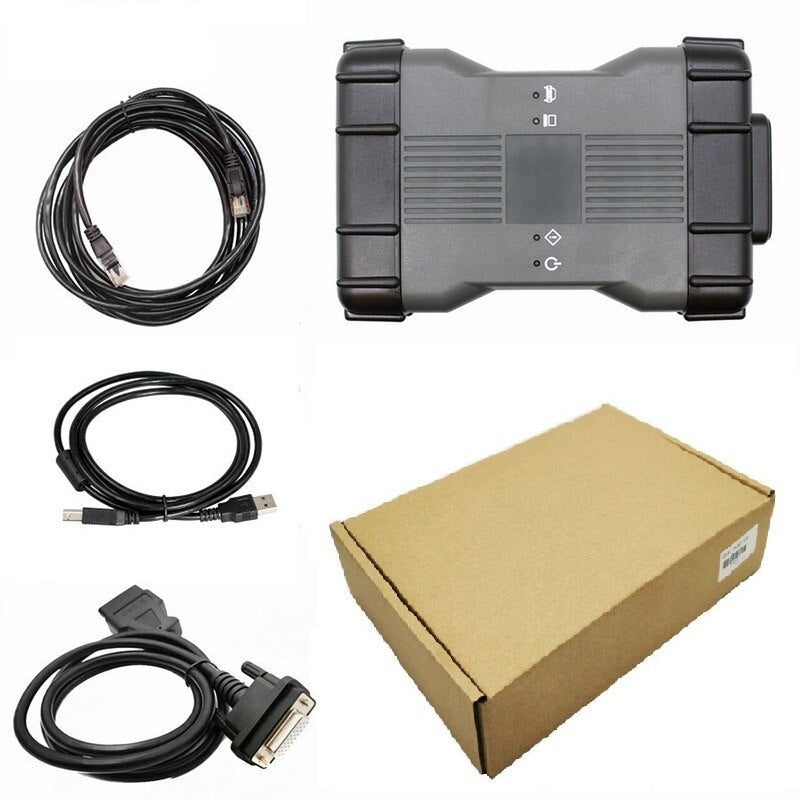

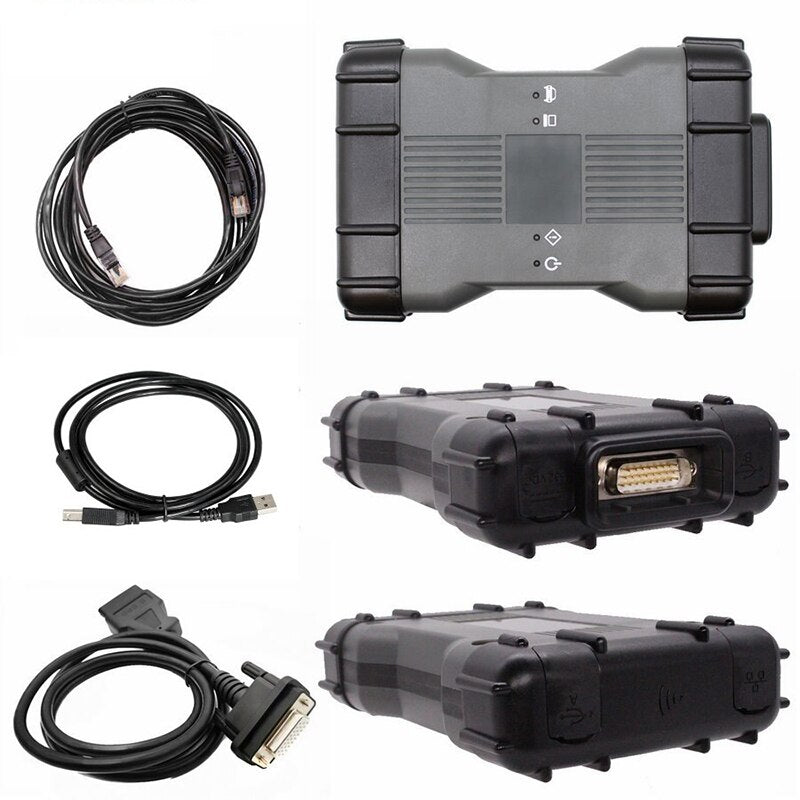

DoIP C6 Package List:
1 pc x VCI DoIP C6 main Unit
1 pc x OBD cable
1 pc x USB cable
1 pc x Etherent cable
1 pc x Software HDD/SSD-------------optional
