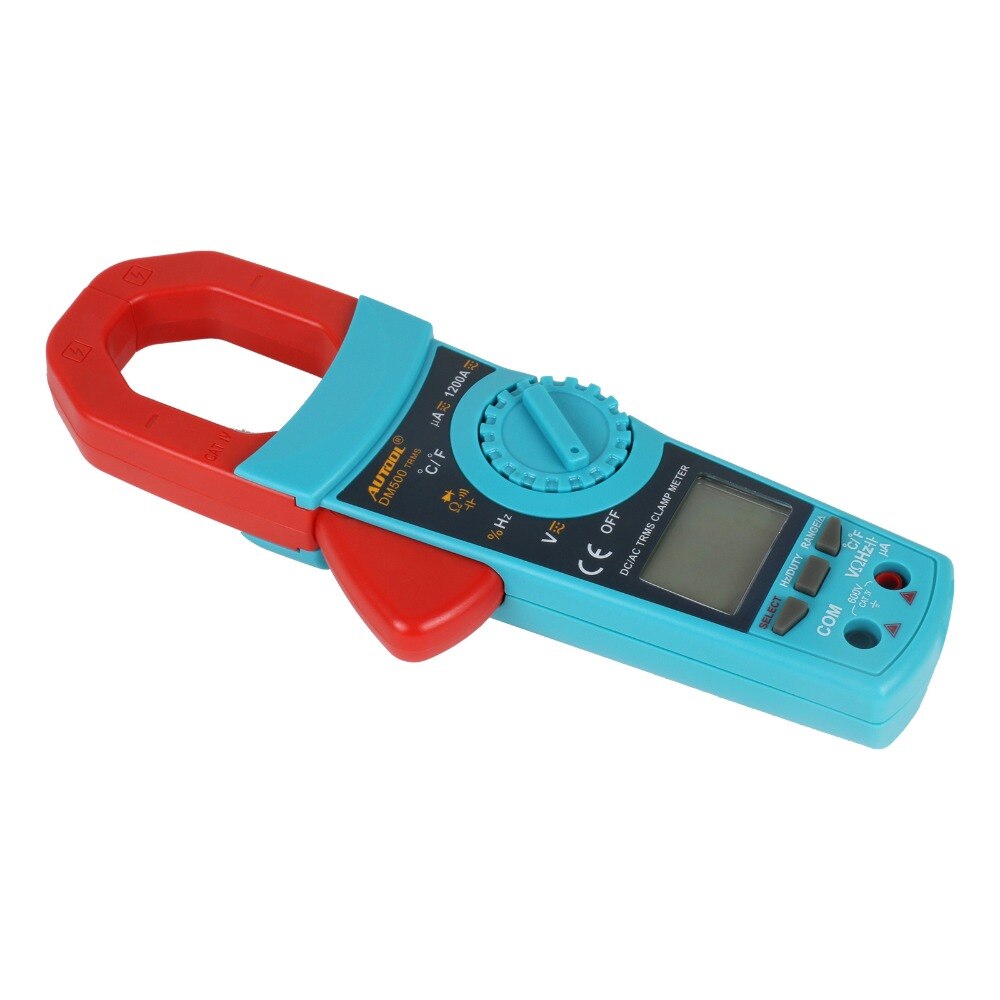

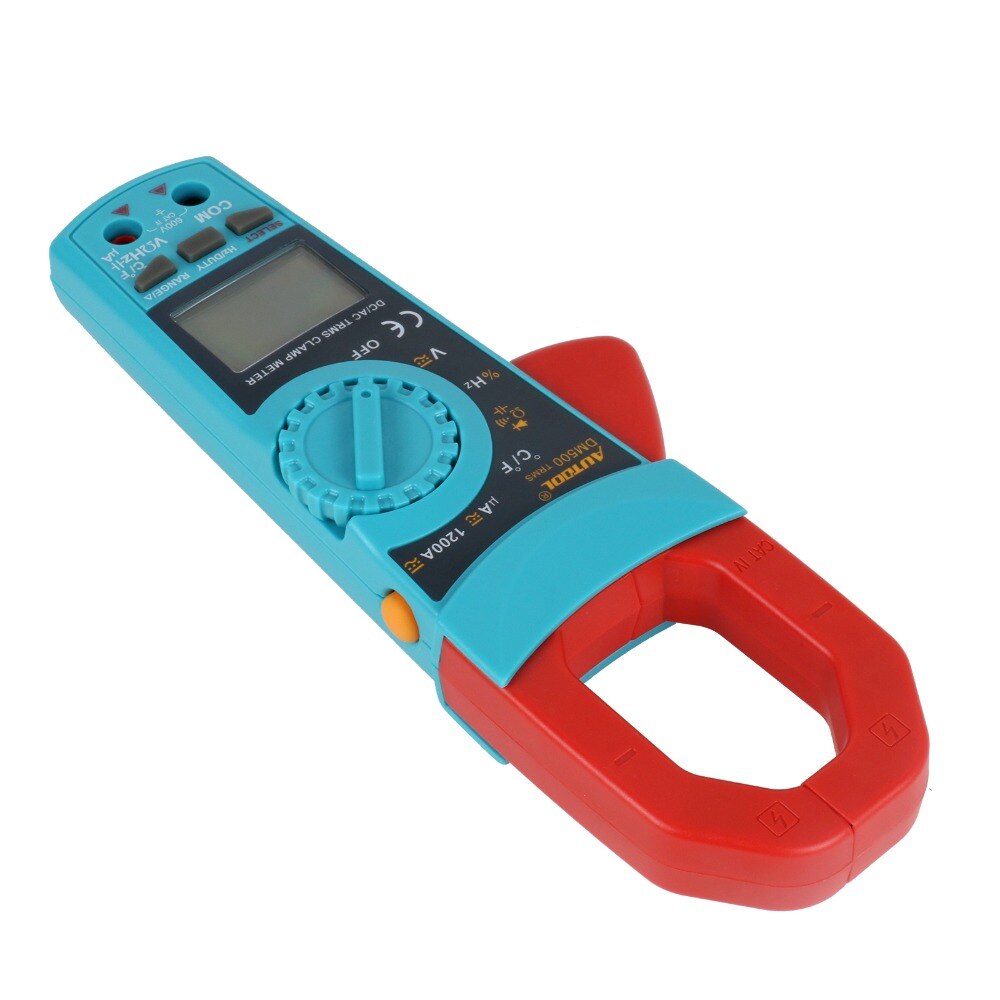

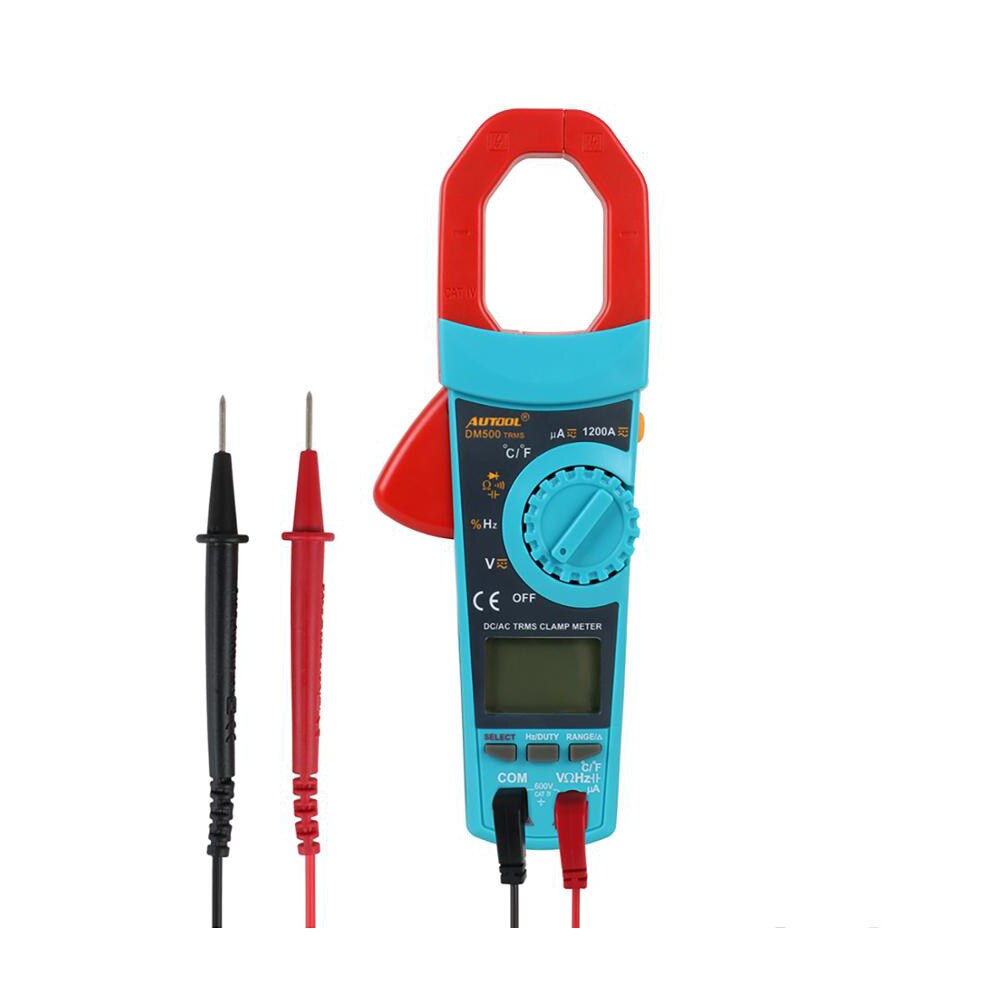

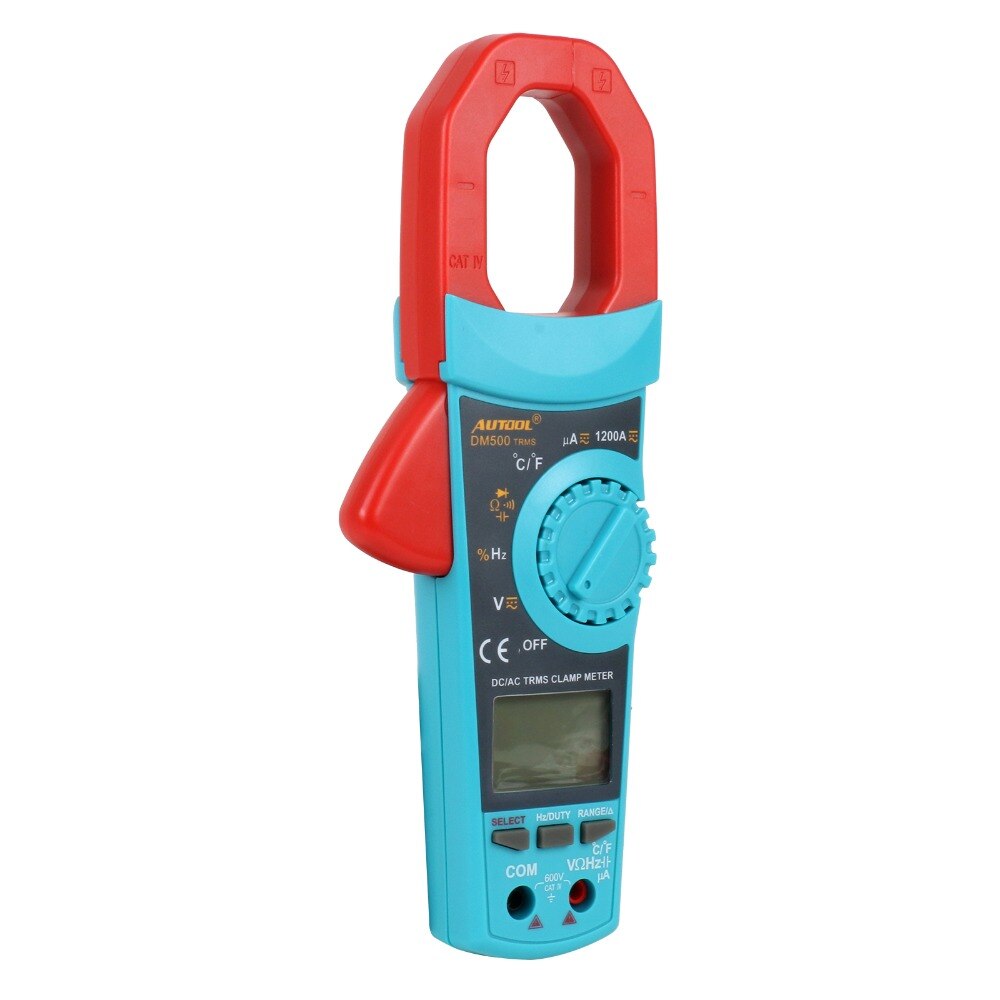

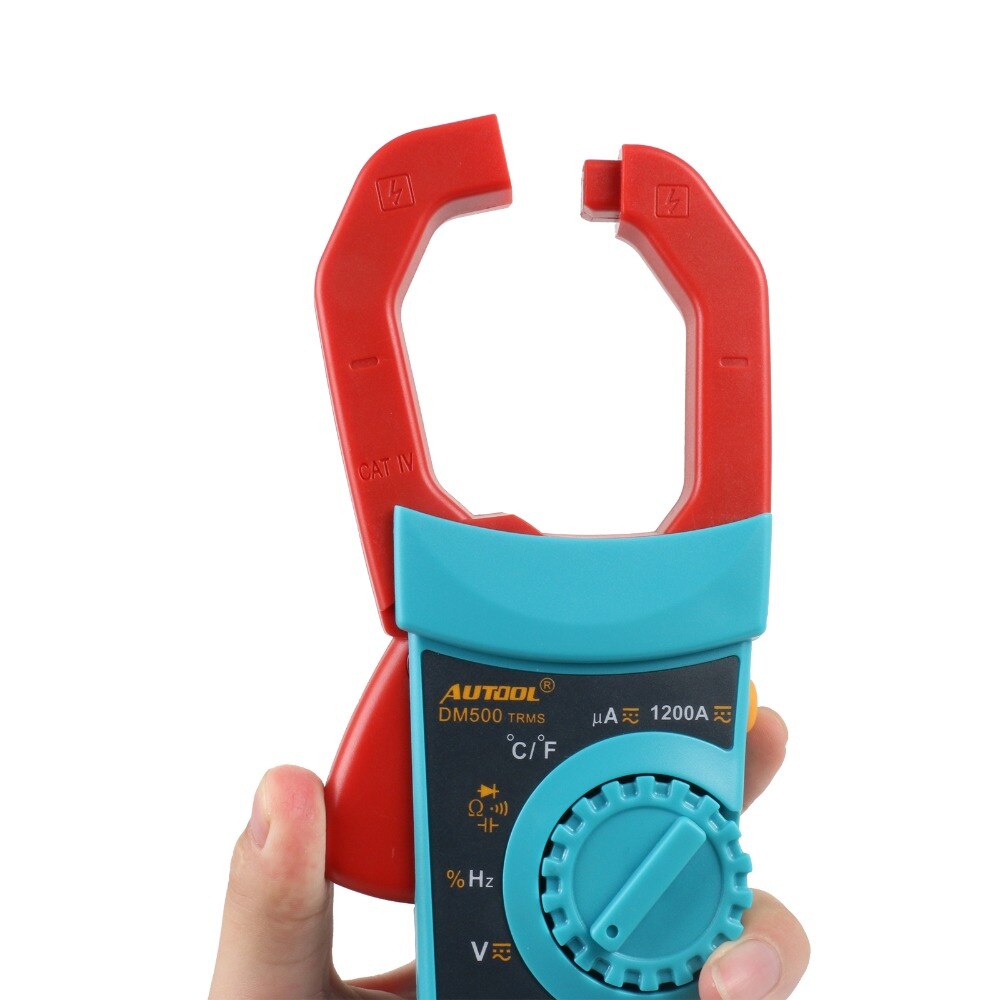

AUTOOL DM500 Car Multimeter Vehicle Circuit Auto Digital Diagnostic Tool Clamp 1000A AC TRMS Electrican Pocket Size Clamp

AUTOOL DM500 Car Multimeter Vehicle Circuit Auto Digital Diagnostic Tool Clamp 1000A AC TRMS Electrican Pocket Size Clamp

Regular price $39.00
Regular price $0.00 Sale price $39.00
Sale Sold out
Shipping calculated at checkout.


AUTOOL DM500 Autoranging Digital Clamp Meter same as VC903

DM500 is a Auto-ranging digital multimeter using double-integral style  A/D transform as the core.

Can be used to measures Temperature, AC/DC Voltage, AC/DC Current, Resistance, Capacitance,Diode and Continuity testing, Frequency and  duty cycle.

Note:

Don’t include two 1.5V batteries

Features:

Auto/manual ranges

True RMS measurement

550V protection in resistance and capacitance ranges

Large LCD display,MAX display 6000 counts

Sample rate: 3 times per second

backlight

Data hold

Polarity identification

Low voltage indication

1200A high current measurement,low current measurement

Auto power off

Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,
Diode and Continuity Testing,Temperature, Frequency and duty cycle.

* Frequency:1Hz to 10MHz

* Temperature:-20℃ to 1000℃(-4℉ to 1832℉)

* Capacitance :10pF to 6000uF

* AC volts: 0.1mV to 750V

* DC volts:0.1mV to 1000V

* AC current: 0.1uA to 1200A

* DC current:0.1uA to 1200A

* Resistance:0.1Ω to 60MΩ

* Duty cycle:1% to 99%
Specifications:

(1)frequency:5/50/500/5k/50k/500k/5M/10M (±0.1+3)

(2)Temperature:﹤400℃ ±(1.0%+5),≥400℃±(1.5%+15)

﹤752℉ ±(1.0%+5),≥752℉±(1.5%+15)

(3)capacitance:10nF(±5.0+20),100nF/1uF/10uF/100uF(±2.0%+5),1000uF/10000uF(±5.0%+5)

(4)DC volt:600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)

(5)AC volt:600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3)

(6)ACA/DCA:600uA/6000uA(±0.8%+10),60A/600A/1200A(±2%+30)

(7)Resistance: 600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)

(8)Duty cycle:1% to 99%(±1%)

(9) Measurement mode: Double-integral style A/D transform

(10)Over range indication: OL

(11) Working environment: 0~40℃, relative humidity < 80%

(12) Supply power: 3V (1.5V AA batteries * 2 Pcs)

(13) Dimension: 2807045mm

(14) Weight: 510g

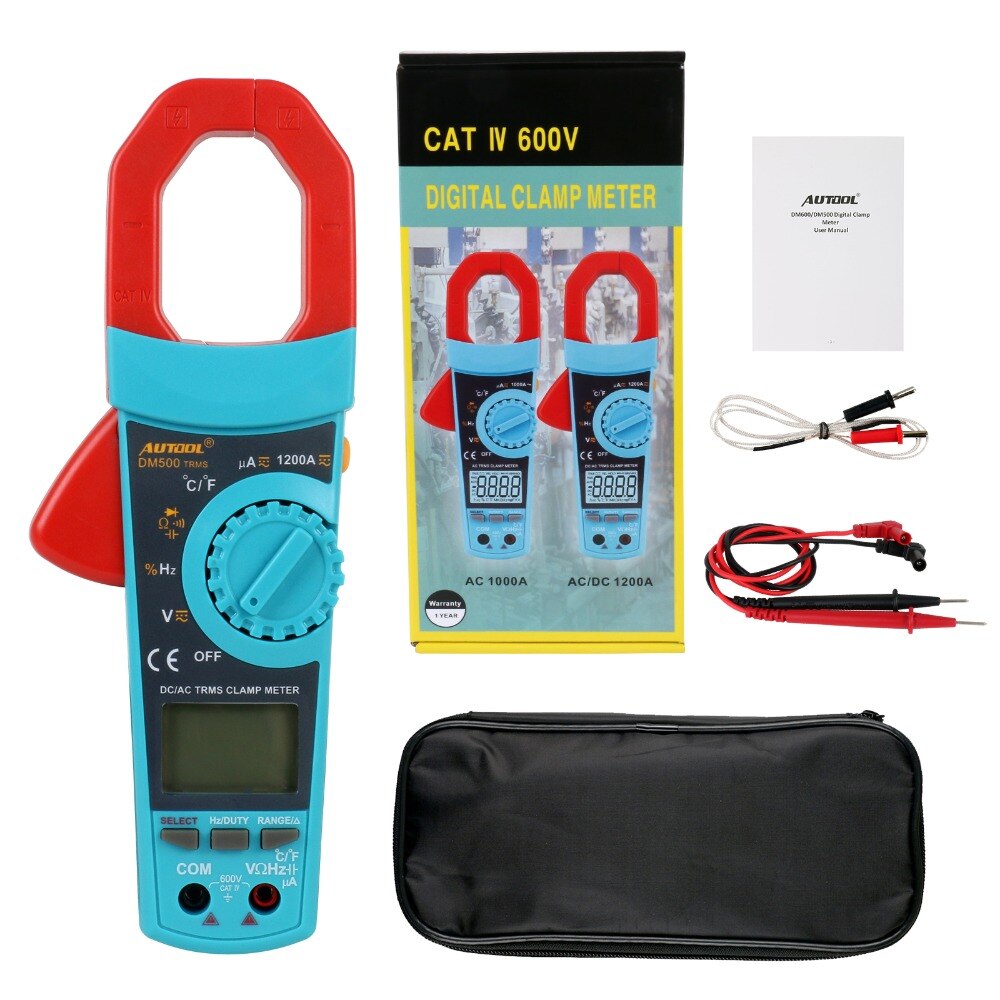

Package List:

1PCS *  DM500 multimeter

1PCS *  A pair of test leads

1PCS *  User Manual

1PCS *  Bag
